Defender D90 2-Door Hard Body for Kyosho Mini-Z 4x4

LOADING IMAGES

Product Model: Mini Z 4X4

Part Id:#TRC/302718

Availability: In Stock
USD $32.99
Qty:

Description
Reviews (4)

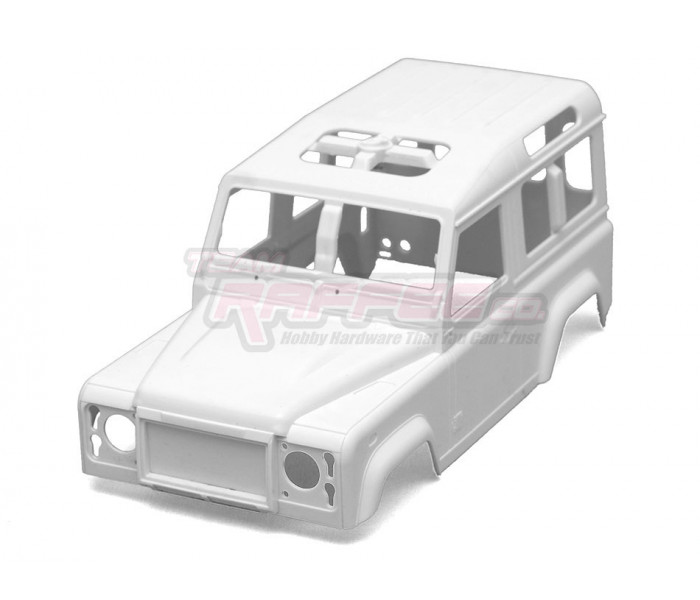

This is a complete Defender D90 2-Door Hard Body set for the Kyosho Mini-Z 4x4.

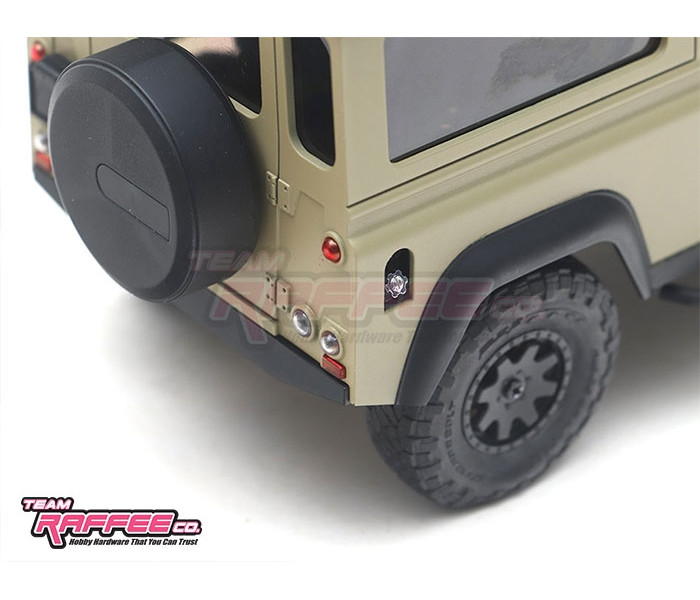

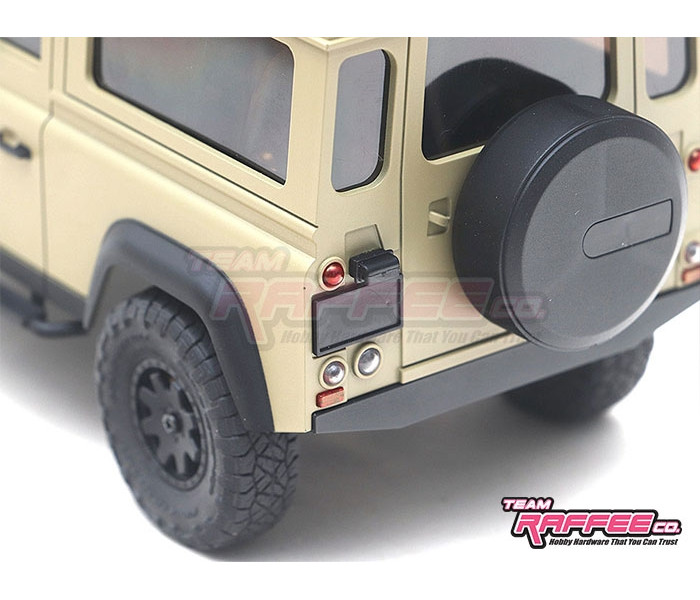

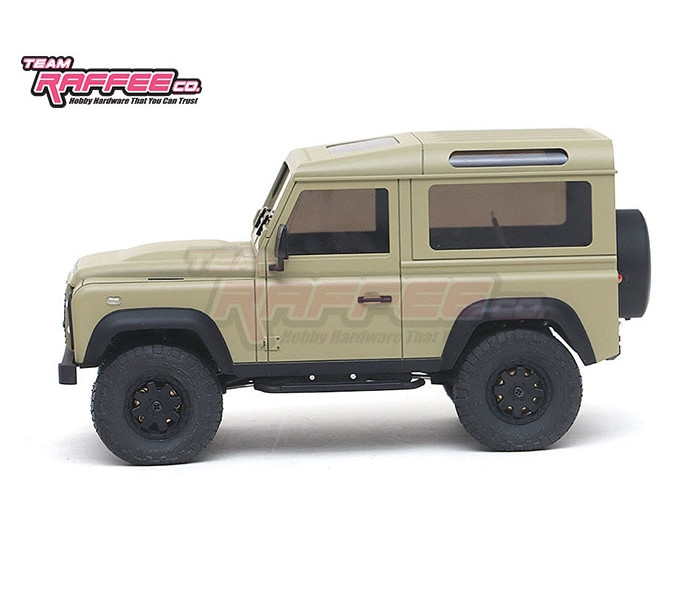

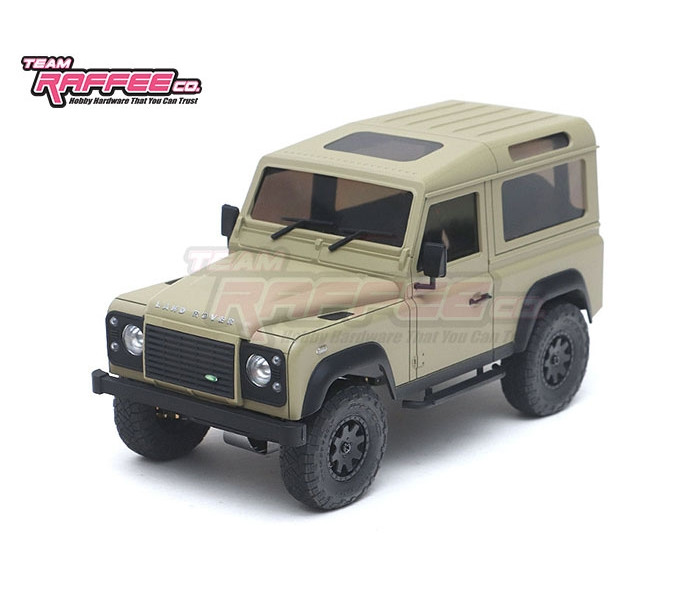

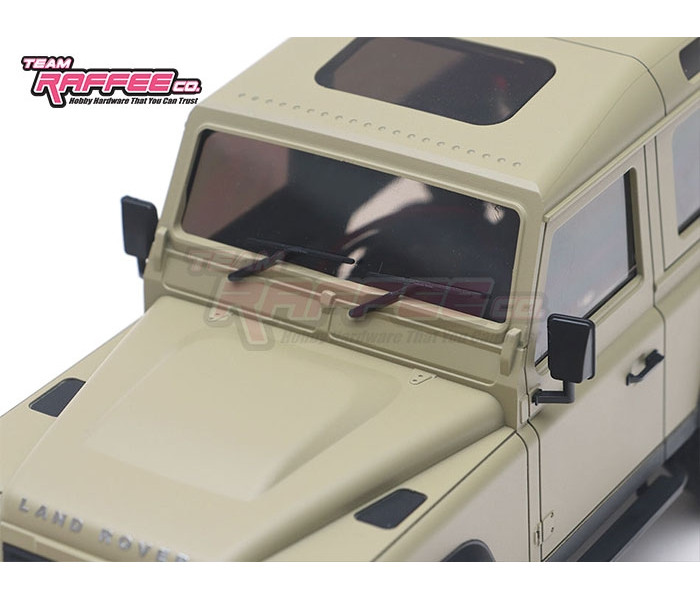

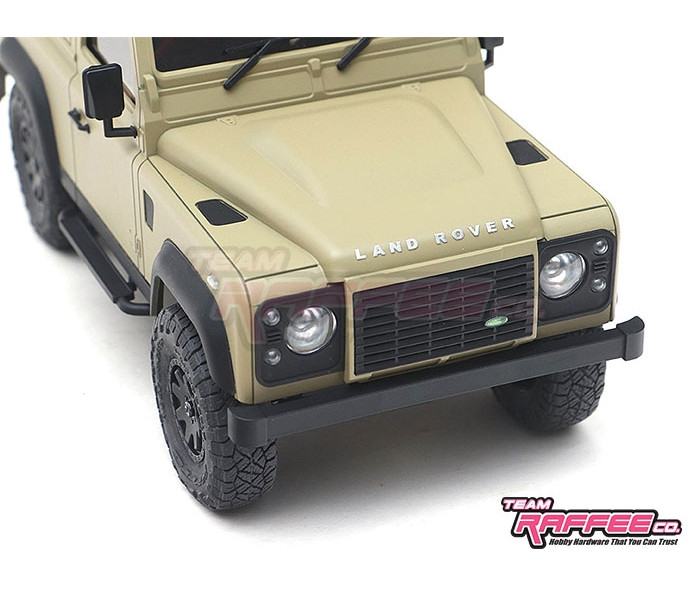

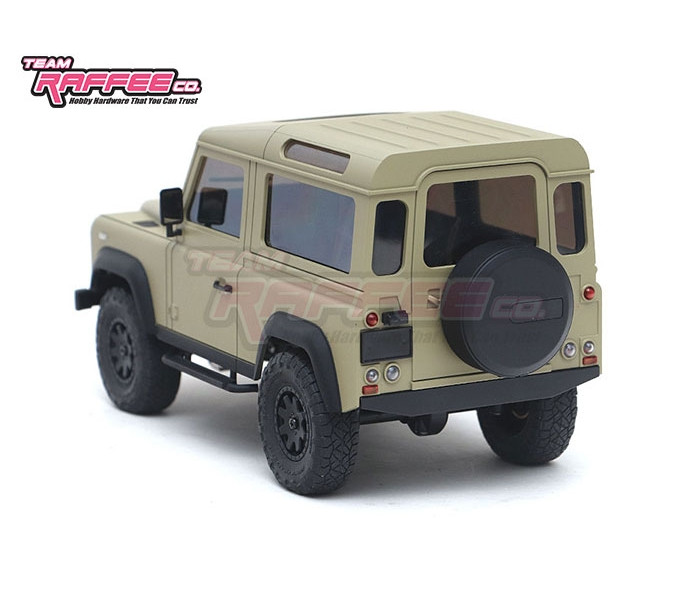

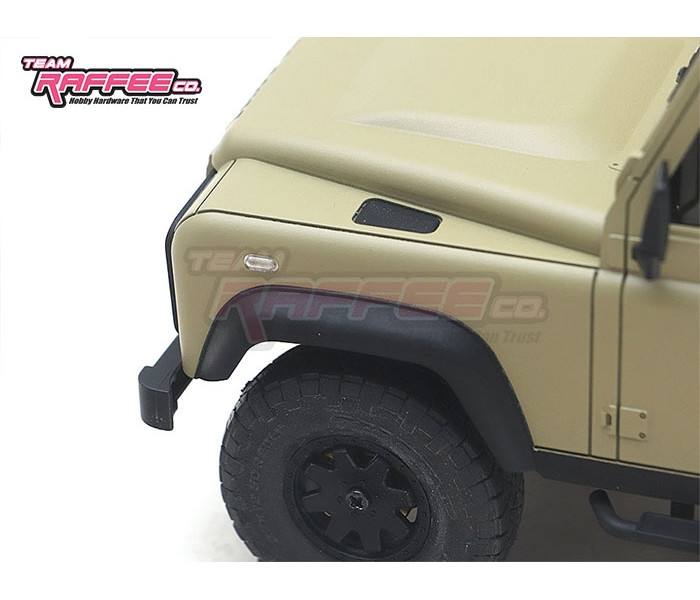

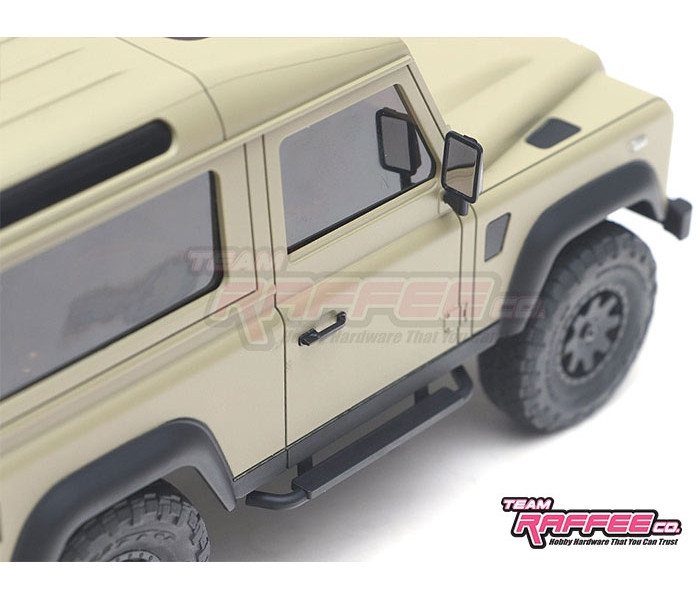

The Defender D90 body shown here is mounted on a Mini-Z 4x4 Hilux 4Runner chassis. It is quite easy to mount. With a few original parts, you can also build a stunning Land Rover Defender D90.

Specification:

Length: 200mm
Width: 95mm
Height: 78mm
Wheelbase: 120mm
Weight: 75g

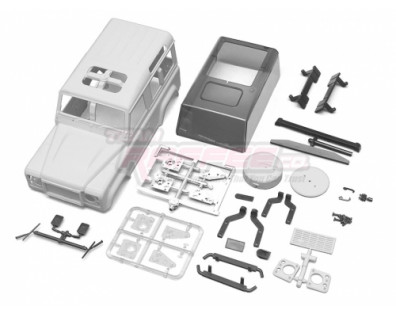

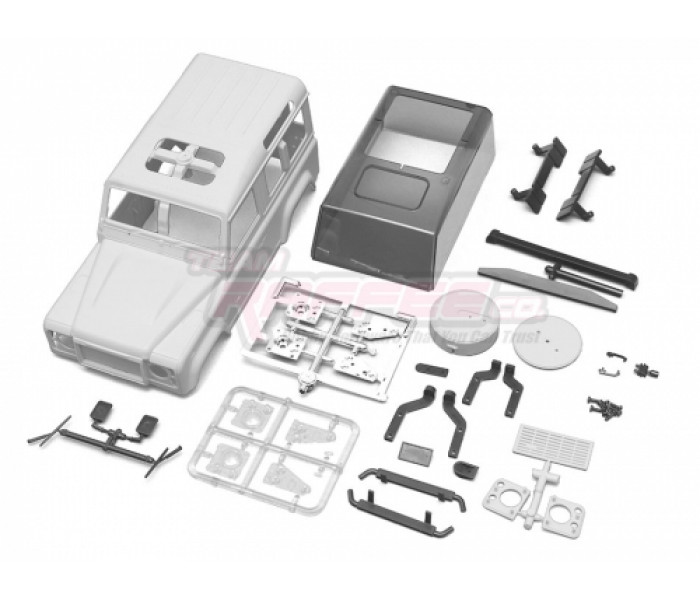

Includes:

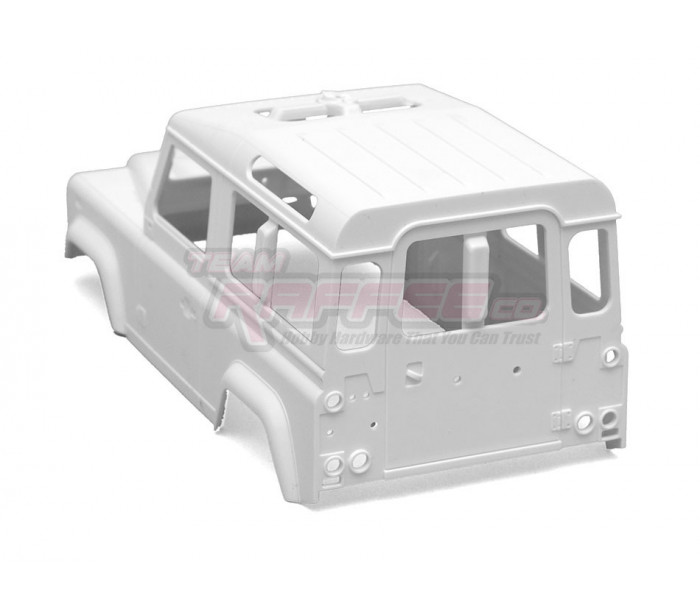

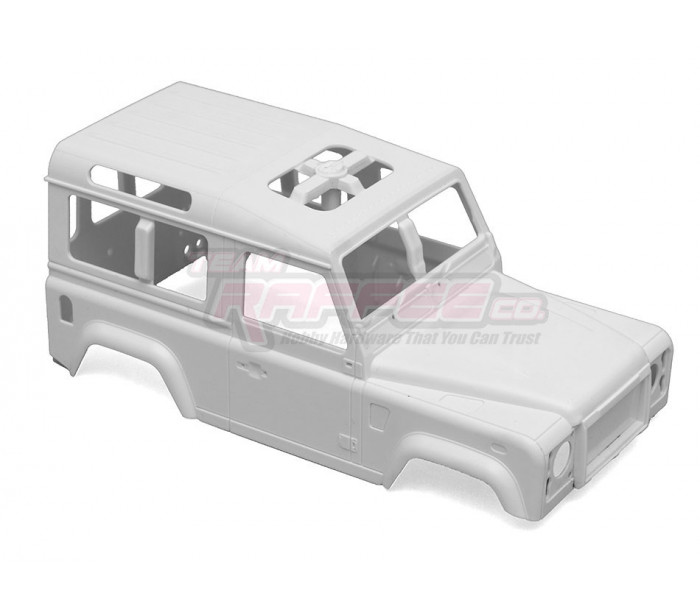

Body
Front bumper
Rear bumper
All the chrome parts
Door handles, wing mirrors, side steps
Light buckets, petro cap, spare wheel cover

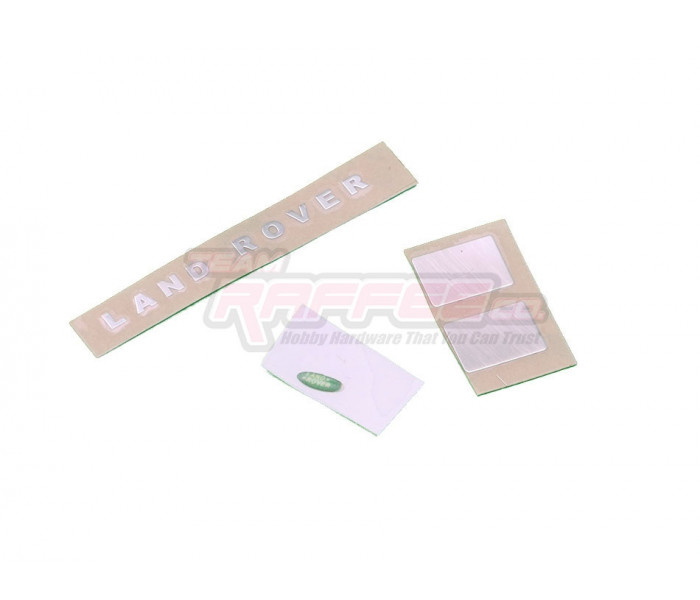

Decals
Light buckets
Pre-tinted windows
Instruction manual

To modify the Jimny chassis:

1. Remove the front and rear bumpers and bumper mounts
2. Install the Defender D90 front and rear bumper mounts
3. Optional - the Defender D90 in this article uses the larger Hilux 4Runner wheels and tires (KYA-MXTH001 Premounted Tire/Wheel 2pcs Toyota 4Runner).

To modify the Hilux 4Runner chassis:

1. Lengthen the front upper Y-links with this (KYA-MX007 Suspension Parts Set).
2. Lengthen the lower links, option of (KYA-MX017 Tie Rod Set) or (KYA-MXW002R Aluminum Link Rod Set WB 120mm)
3. Mount the rear shock towers in reverse position
4. Remove the front and rear bumpers and bumper mounts
5. Install the Defender D90 front and rear bumper mounts

This item is available for distribution from AsiaTees.com
