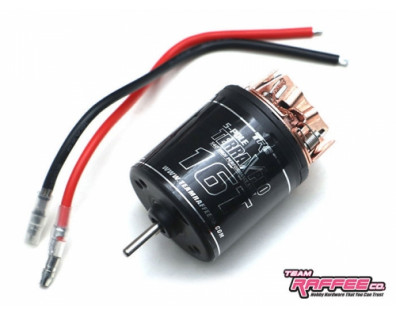

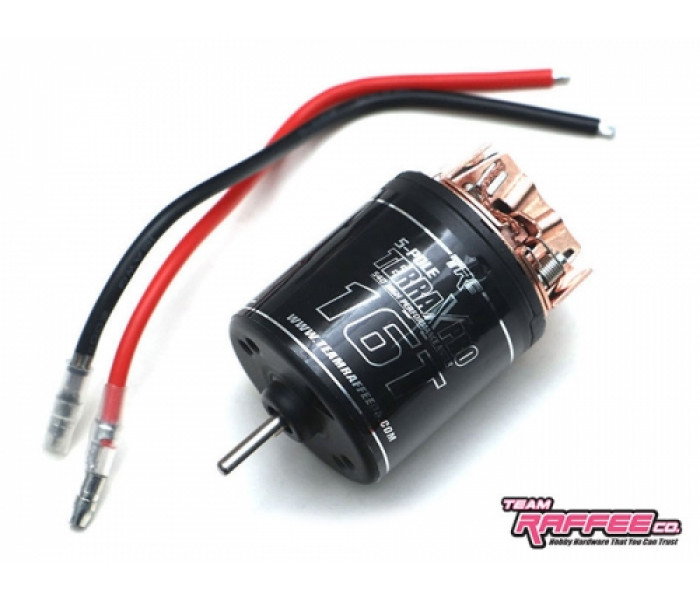

Terra X™ Pro 16T Balanced 5-pole 540 High Performance Brushed Motor 1750Kv


LOADING IMAGES

  • Product Model: All

    Part Id:#TRC/302623-16T

    Availability: In Stock

  • USD $23.00
  • Qty:
  • 3 reviews

  • Description
  • Reviews (3)
Want brushless motor smoothness in a budget? This is what the TRC Terra X Pro 5-Pole 16T 540 High Performance brushed motor is all about. The 5-slot armature provides great low-end control. This is best suited for R/C crawlers that require incremental power to navigate through difficult terrains.

Features:
  • Balanced 5-slot armature
  • Very smooth power and control at low speed
  • High strength magnets for large amounts of torque
  • Excellent torque and long-run times
  • Direct-Solder Wiring Tabs for flexible mounting options
  • Dual-ball Bearings Design for an efficient drivetrain
  • Rebuildable design with an easily accessible commutator and replaceable brushes and springs

Specification:
  • Type: Brushed
  • Size: 540
  • Poles: 5
  • Turns: 16T
  • Equivalent speed to 35T 3-Pole 540 Brushed Motor
  • RPM: 11000 @ 7.2V / 3.9A (at no load)
  • RPM: 10000 @ 7.2V / 8.1A / Torque 280g-cm (with load)
  • At Stall Extrapolation: Torque 3038.1 g-cm / 49.3A
  • At maximum:
    • Efficiency: 65.3%
    • Speed: 8581 RPM
    • Torque: 608.1 g-cm
    • Current: 13.4A
    • Output: 49.3W

Equivalent KV:
  • Terra X Pro 540 11T - 2200Kv
  • Terra X Pro 540 13T - 2000Kv
  • Terra X Pro 540 16T - 1750Kv
  • Terra X Pro 540 20T - 1420Kv


This item is available for distribution from AsiaTees.com
