1/10 ARTR Assembled D90 Chassis w/ Defender D90 Pickup Hard Body

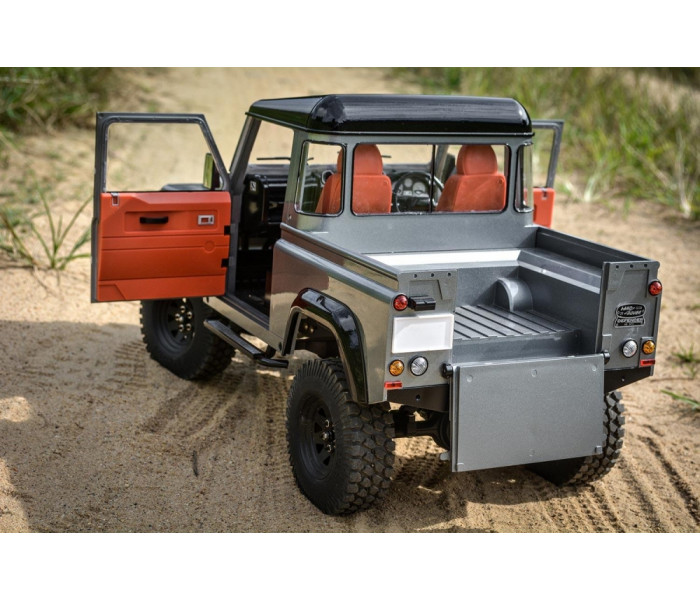

Complete kit of Team Raffee Co. D90 ARTR Chassis and D90 Pickup Truck hard body. A scale and performance rig that you can go out to the trails to crawl, and have fun with while looking amazingly great and scale.

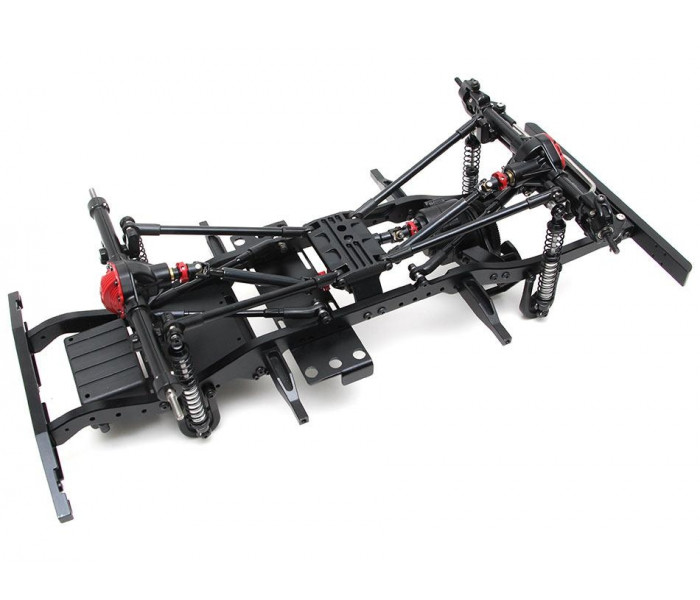

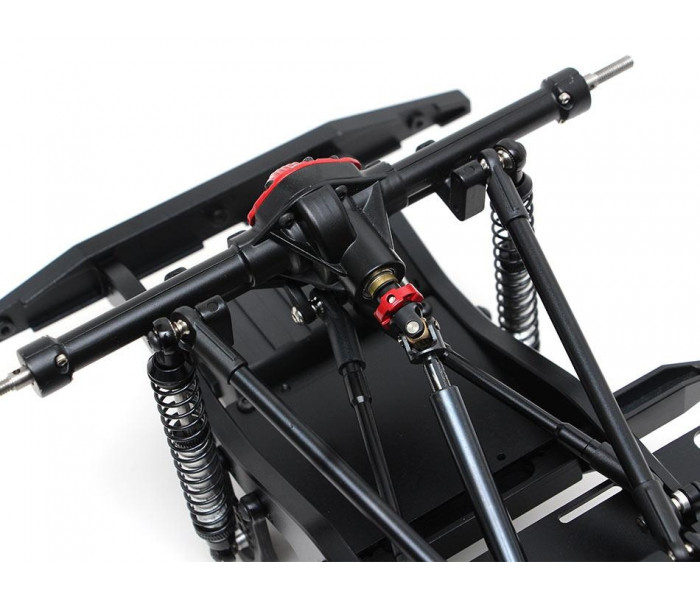

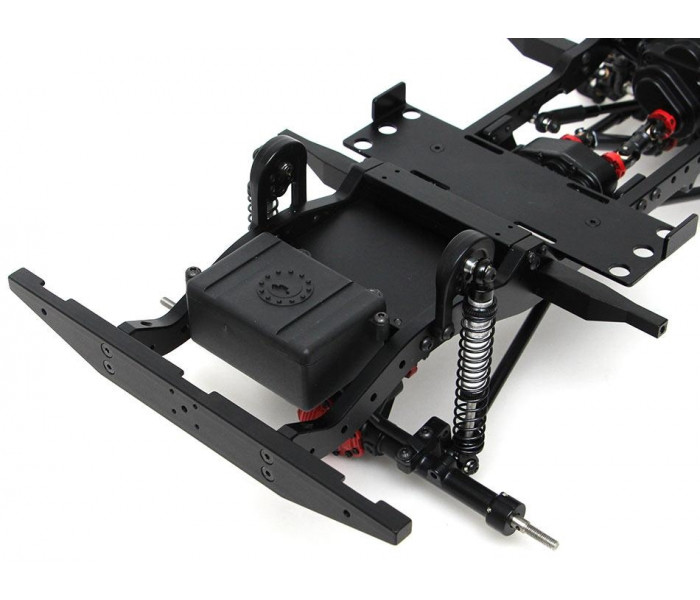

The Team Raffee Co. D90 Metal Chassis Kit has a front 3-link setup with chassis-mounted servo (CMS) and a Panhard mount. Rear runs links as well.

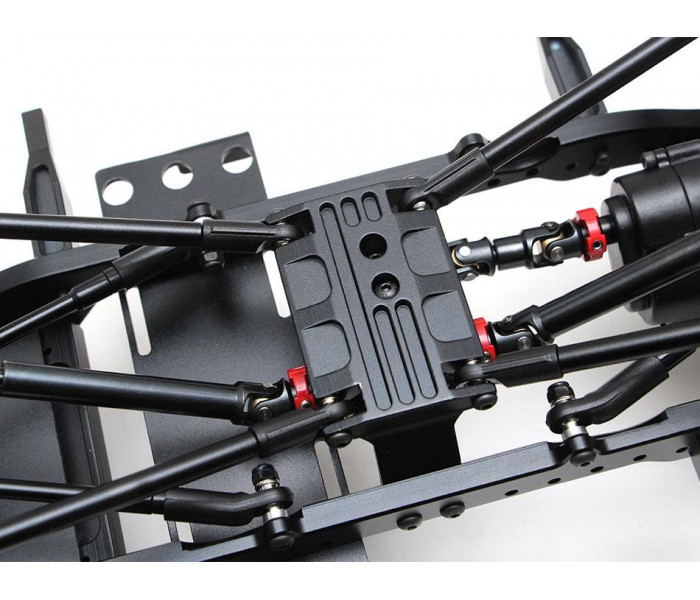

The chassis includes Team Raffee Co. Complete Scale Axles, front and rear driveshafts, driveshaft from the motor to transfer case, aluminum shocks, 1.9 Beadlock wheels and tires, transmission, T-case, aluminum links, HD gears, battery plate, body mounts, skid plate, aluminum links and plastic ball ends, rails and bumpers, shock towers and receiver box. The body is also included.
- Scale 1:10

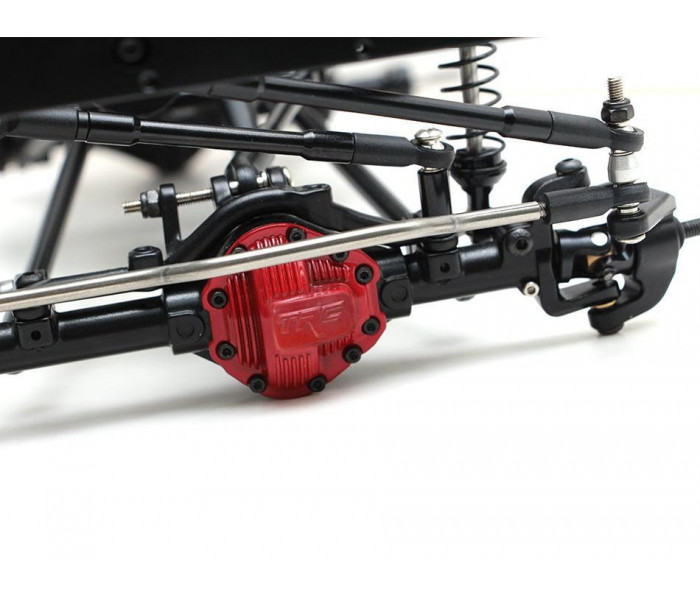

- Comes with Team Raffee Co. Scale Axles
- Over 45-degree steering angle
- 27/10T heavy-duty helical axle gears and input shafts

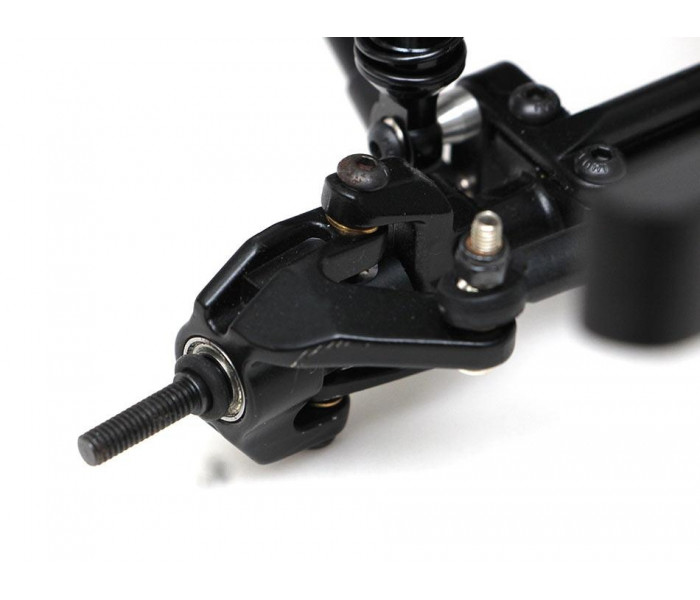

- Heavy Cast Knuckles
- Overall length (bumper to bumper): 434mm
- Wheelbase: variable 282-287 mm
- Frame width: 85mm (outside) 73mm (inside)
- Front bumper width: 195mm
- Rear bumper width: 190mm

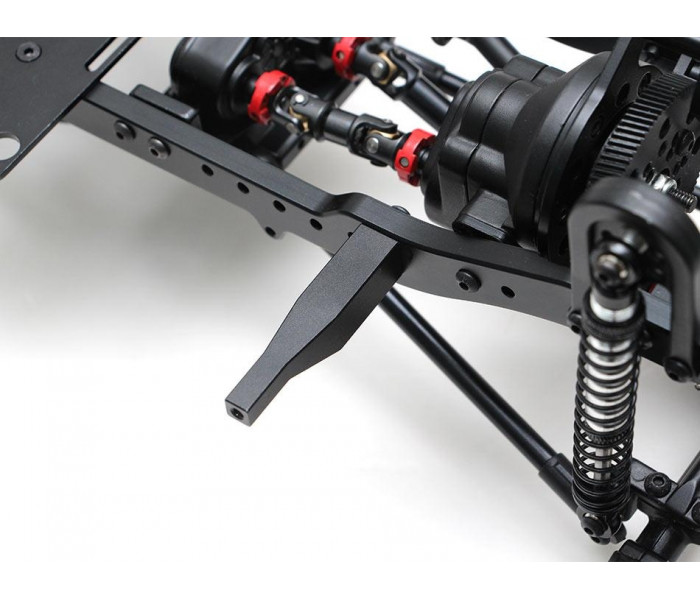

- Body post width: 190mm
- Body post distance hole to hole: 138mm
- Mainly all parts in 6061 alloys assembled
- Full metal internal gears in axles
- Full metal internal gears in the transmission
- Full metal internal gears in the transfer case
- HD universal driveshafts
- Aluminum M3 upper and lower links, drag link, and Panhard link
- Stainless steel steering tie rod link
- 4x cast metal adjustable shock mounts
- 4x aluminum shock extension
- 1x helical pinion gear
- 1x helical main gear
- 4x 12mm aluminum hex
- 4x stamped steel 1.9 Beadlock wheels & tires with foams
- Full ball bearings
To complete this chassis you will need
- 2-channel radio system
- Steering servo
- Electronic Speed Controller (ESC)
- Battery & Charger
- Paint & accessories
After you take the car out of the box, do not put electronics and battery on it immediately and run it immediately. Inspect the vehicle and take it apart, including the axles. If need be, shim the axles. Grease the axles properly. Check all of the screws to make sure they are tightened and nothing is loose, loctite the screws if necessary.

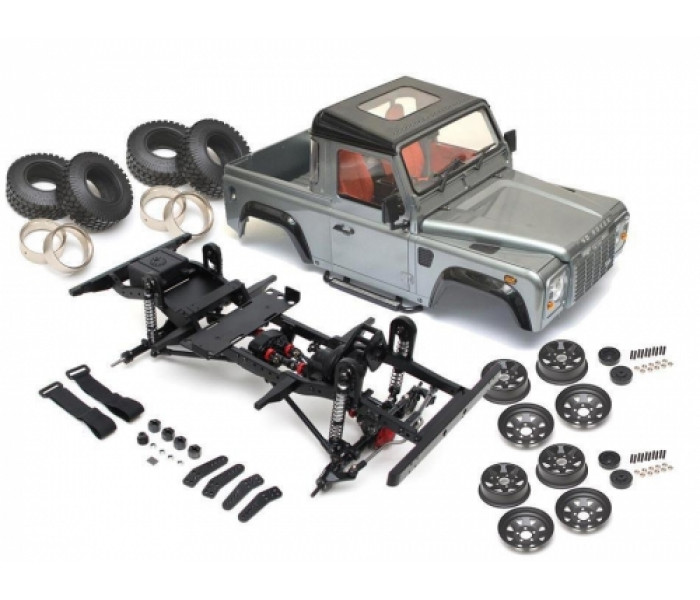

Photos are for reference only. Accessories are extra options. The body comes unpainted. Kit includes the body and ARTR chassis. Electronics are not included. Does not come with hood decals.
